| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | LG |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product: | 316L Sanitary Screw Pump | Type: | DJ-LG-R/L |
|---|---|---|---|
| Mechanical: | Single Seal | Inlet: | Thread / Clamp / Ferrule |
| Outlet: | Thread / Clamp / Ferrule | Structure: | Be Covered |
| High Light: | lobe rotary pump,high pressure pumps |
||

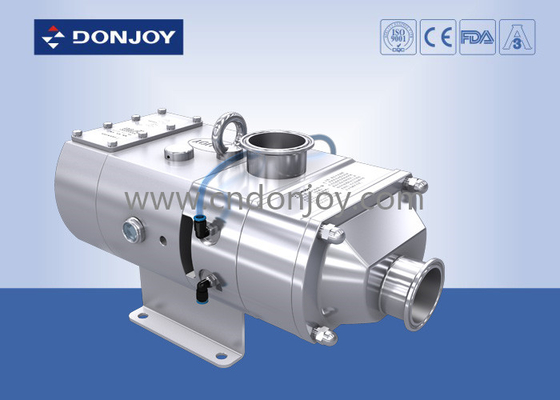

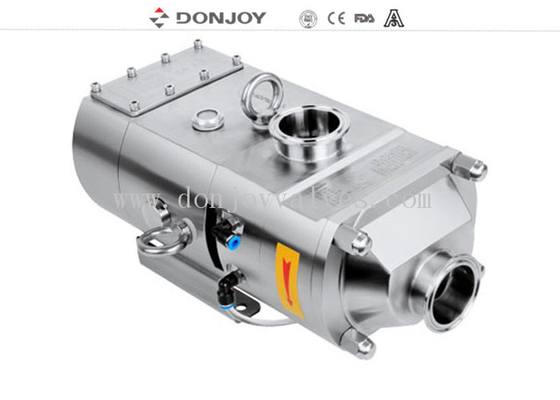

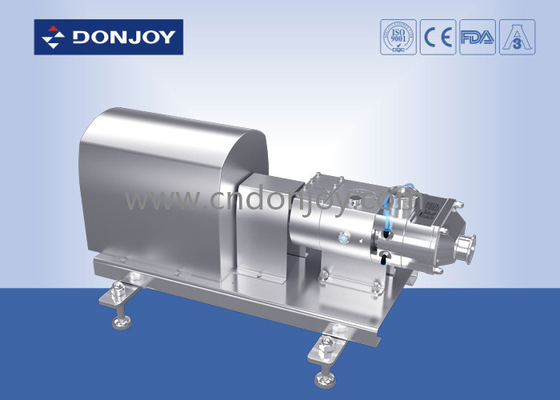

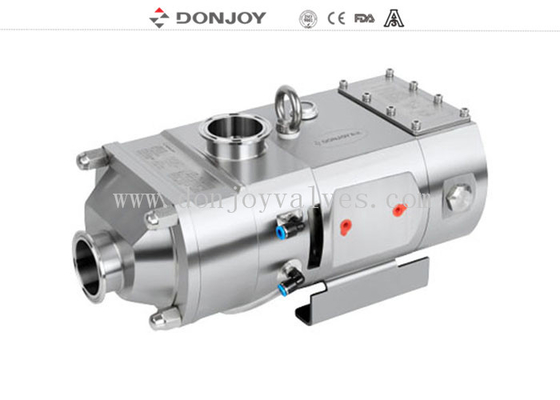

316L Sanitary Twin Screw High Purity Pump apply for CIP and SIP systems
Description
Twin screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid ,mixture,high viscosity,low viscosity,etc
It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.
It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on
Specifications
|
Product Name: |
316L Sanitary twin Screw High Purity Pump apply for CIP and SIP systems |
|
Valve Body Material: |
100% stainless steel, product contact part 316L |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
120 m3/h |
|
Speed Range: |
10-3500 R.P.M |
|
Max. Head: |
200H(m) |
|
Max. Working Pressure: |
20Bar |
|
Max. WorkingTemperature: |
150 °C |
|
Surface treatment: |
Ra≤0.6μm, EP=Ra0.4μm |
|
Motor: |
ABB / domestic |
|
Motor Frequency: |
50HZ, 60HZ |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
|
3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic etc |
Applications
Twin screw pump
1. has strong self-priming ability, can transport solid particles, gas-liquid mixture, high viscosity, low viscosity and other materials. But also apply for cip and sicp systems. Can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost. It has extra characteristics, that other volume pumps do not have. Such as no pulse phenomenon, no particle, damage, high pressure, wide speed range, large flow range.
Design and features
1. material transportation and extraction
2. apply for CIP and SIP systems
3. no pulse phenomenon, no particle damage
4. high pressure, speed range, larage flow range and so on
Flexible soluction for two Direction reversible, High pressure, High Viscosity, Large Particle, Pulse free, Liquid Delivery.
Choose the right screw spacing for your process
Option 1: Large screw spacing, large flow rate, Can deliver larger particles, But the pressure will be lower compared with samll spacing screw
Option 2: Samll Screw spacing, lower flow rate but higher pressure, the particles that can be transported will also be smaller.
LG SCREW pump Graph
