| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Model Number: | NO.MINI-VAQ100S1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD10-100 /seet |
| Packaging Details: | Carton, Wooden Case |
| Delivery Time: | 5-30 working days |
| Payment Terms: | T/T,L/C, Credit Card |
| Supply Ability: | 10000 set /week |
| Brand: | DONJOY | SIZE: | 1/2",3/4" |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Welded, Clamped,Thread, |
| Polished: | Mirror, Matt | Max Pressure: | 10 Bar |
| High Light: | 3/4" Pressure Safety Valve,1/2" Pressure Safety Valve,3/4" pressure regulating valve |
||

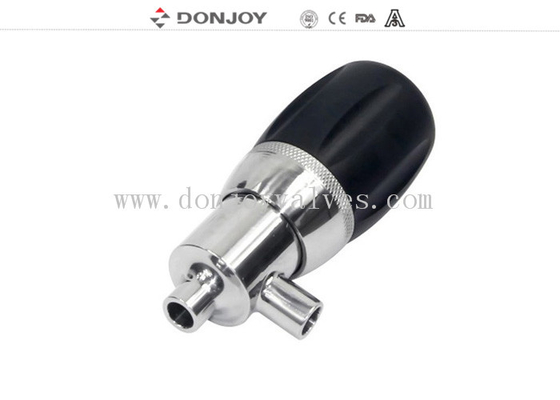

Donjoy 1/2"-3/4" stainless steel 316L butt welding rubber seal safety valve
Specification
|
Product Name: |
Donjoy 1/2"-3/4" stainless steel 316L butt welding rubber seal safety valve |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
EPDM,NBR,FPM,PTFE |
|
Max.Working Pressure: |
10Bar |
|
Max. Working Temperature: |
150 degree C |
|
Available size: |
1/2",3/4" |
|
Available connection: |
Thread,Clamp,Welded |
|
Available standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic |
|
Certificate: |
FDA,CE |
Drawing
Applications:
1. Safety valve is used to protecting pipe, pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is best choice for protection equipment in dairy , food, beverage, pharmacy and fine chemical industries.
Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
