Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VZB40
Contact Us

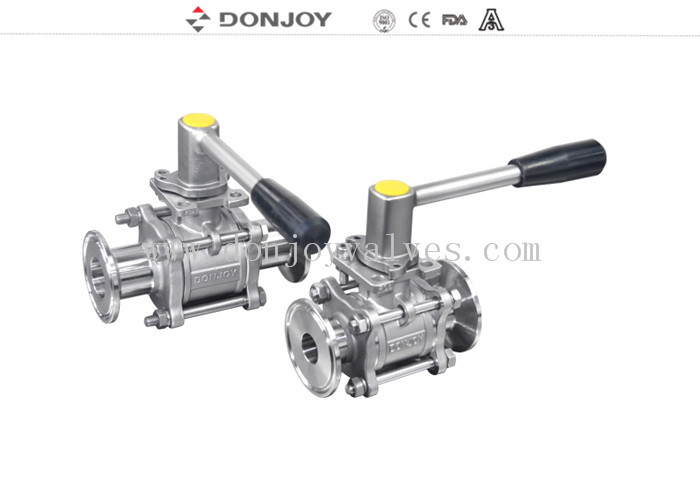

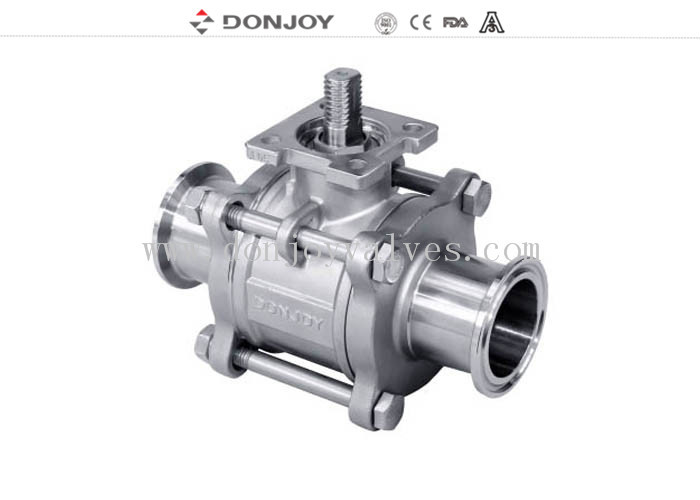

3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food and beverage
Description:
Type of Non-rentention ball valve
1. Pneumatic three-piece mon-retention ball valve
2. Pneumatic three-piece mon-retention ball valve with positioner
3. Pneumatic three-piece mon-retention ball valve with C-TOP
4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP
5. Pneumatic three-piece mon-retention ball valve With Electric actuator
6. Aluminum acuator with positioner
Specification
| Product Name: | 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10 Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Advantage:
Small Turque
FDA certificate for the Gasket
Easy Cleaning
Full Port Ball
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,
Torque Information:
| SIZE | 1/2”-3/4” | DN25/1” | DN32/11/4” | DN40/1.5” | DN50/2” | DN65/2.5” | 3” | DN100/4” |
| Nm | 6 | 10 | 12 | 14 | 20 | 40 | 75 | 110 |
Relate Ball valve
Drawing
Curve
Competitive Advantage:
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Tag: Sanitary ball valves, Donjoy valves, Non-retention ball valves
