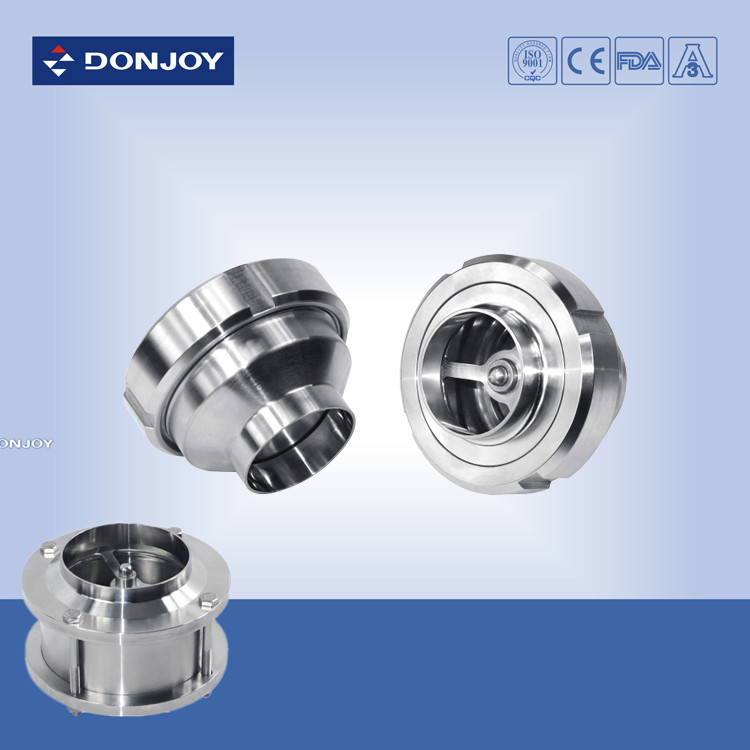

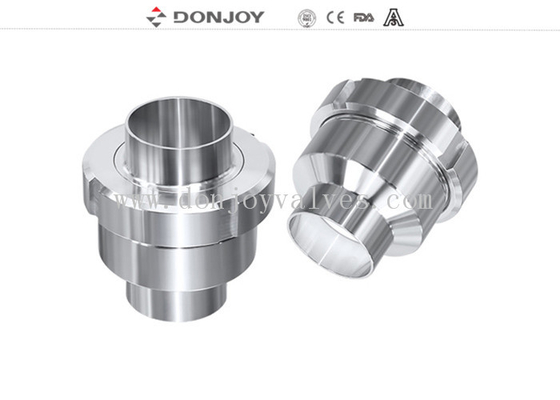

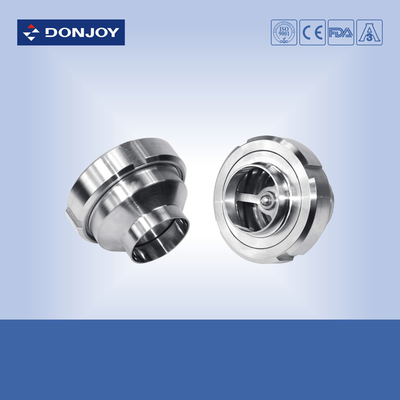

Food / Beverage Sanitary High Pressure Check Valves Mirror Matt Polished

Food / Beverage Sanitary High Pressure Check Valves Mirror Matt Polished

hydraulic inline check valve

pneumatic check valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VZH200A01

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
DN40 - DN200,1 "- 8"
Stanadard:
DIN, 3A, SMS, ISO
Connection:
Threaded
Polished:
Mirror, Matt
Application:
Wine, Oil, Cosmeticas.etc
Gasket:
PTFE
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Food / Beverage Sanitary High Pressure Check Valves Mirror Matt Polished



Specification

Product Name: SS304 / 316 C - Type sanitary check valve with threaded connection for food and beverage process
Valve Body Material: SS304 or SS316L
Seal Material: EPDM
Max. Working Pressure: 10Bar
Opening pressure: 0.1-0.3bar
Max. Working Temperature: 120 degree C
Availably size: DN40-DN200,1 "-8"
Availably connection: Thread,Weld,Clamp
Availably standard: DIN,SMS,3A
Certificate: FDA,CE





Description

1. Connection: Clamp, Weld, Thread

2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

3. Standard: DIN,SMS, RJT, IDF, ISO, 3A

4. Small-size construction

5. DIN11851 connection (standard)



Applications:

1. Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

2. It can be used to prevent the flow less from returning avoid pipe-hammering

3. It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.





Drawing

Specific selection with reference according to  following drawings.



Food / Beverage Sanitary High Pressure Check Valves Mirror Matt Polished 0

Food / Beverage Sanitary High Pressure Check Valves Mirror Matt Polished 1



What Are Sanitary Valves Used For?

Sanitary valves are two-port valves that feature two separate openings on their body. Fluid enters one opening and exits from the other. These valves help with applications that require liquids to flow in only one direction.

Sanitary valves come in two forms: horizontal and vertical.

Horizontal valves are suited to horizontal lines that need self-draining valves

Vertical valves can be used in either vertical or horizontal installations; in horizontal applications, vertical valves help when self-draining valves can’t maintain pump prime and temperature continuity

In the case of horizontal spring-check valves, product flow pushes a disc in the valve away from the seat. When forward flow pressure is removed, the electropolished spring will return the disc to its original position and hold it against the seat to keep it closed. Backflow pressure will also force the disc into the closed position.

Check valves help in scenarios that require the evacuation of process pipelines. This can occur for a host of reasons, especially those involving product recovery or drainage. Some applications may also require air agitation on the products in the pipelines or in the tanks they lead to. Check valves can accomplish this.



Things to Keep in Mind When Installing a Sanitary Check Valve



– Ball Check Valve –

In a vertical setting, the product has to flow from bottom to top so that gravity can push the ball in and out of the seat.In a horizontal setting, the curved portion of the valve needs to be upright and at 90 degrees to the pipe. This makes sure that the valve is free-draining and the ball sits properly.

– Disk Check Valve –

Disk Check Valves are not free-draining in a vertical setting. Therefore, for them to be free-draining, they need to be in a horizontal position.

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.
