Valve with Aluminum actuator with Intelligent C TOP-1561 control unit to feedback PLC

Valve with Aluminum actuator with Intelligent C TOP-1561 control unit to feedback PLC

pneumatic valve positioner

digital valve positioner

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

C-TOP-11

Contact Us

Request A Quote
Product Details
Product Name:
Control Unit
Power:
DC.24V
Pneumatic Pressure:
4-7bar
Level Of Protection:
IP67
Operation interface::
Key
Working Pressure:
10bar
Max. Working Temperature:
70℃
Max. C - TOP Units:
31 C - TOP Units
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $600 - 1,000 / Piece
Packaging Details
carton box
Delivery Time
200 Piece/Pieces per Month
Payment Terms
T/T, LC, Credit Card
Product Description

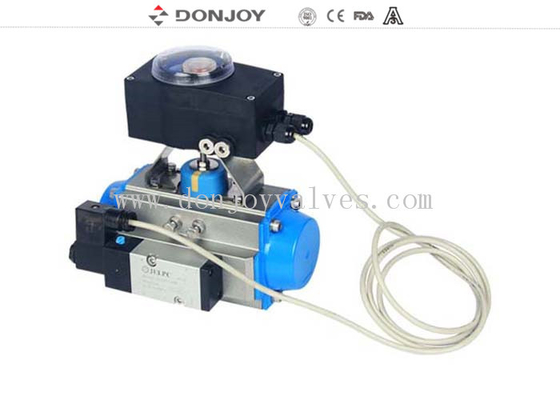

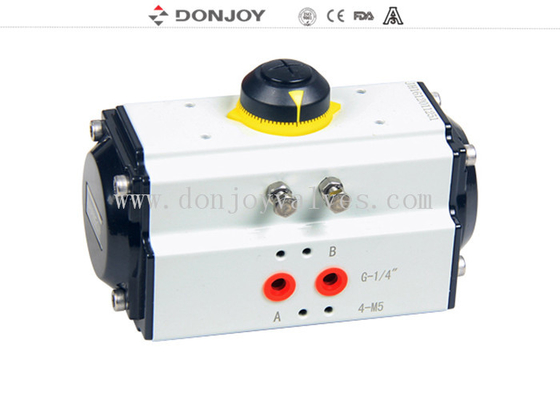

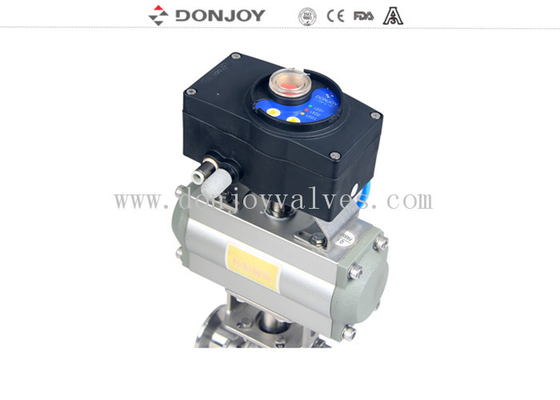

Valve Aluminum actuator with Intelligent C TOP-1561 control unit to feedback PLC



Technical Feature

1 Input: PNP24VDC

2.Feedback output:PNP DC24V& 4-20mA

3.power Supply: DC24V±10%

4.Bus Communication:AS-I BUS

5.Accuracy: Repeat positioning accuracy≤0.2%

6.Ajusting: Single button auto-adjusting function

7.Operation mode: Manul/Automatic operation

8.Leakproof diagnostic Function

9.Display: two-section Light Color open: Green/Red, Close:red/Green

10.Strocke Range: 0-180degree



SPECIFICATION

Product Name Intelligent valve positioner
Medium Lubricated compressed air, inert gases
Max. Working temperature 70℃
Working pressure 1.5 bar - 7 bar (22PSI to 102PSI)
Connector G1/8"
Level of protection IP67
Air flow 200NL
Feature Pneumatic actuator of double acting
Structure Could be with Position sensor
Stroke 180degree
Max. C - TOP units 31 C - TOP units
Connecting cable 2m
AS-I BUS max. length: 1m



Applications

C - TOP is pneumatic controller which is designed to ensure optimum control valve.

It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,

it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, ball valve, diaphragm valve, reversing valve and globe valve etc.



Design and features

Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.

Since cables are largely decreased, installation and start up become more convenient.

Besides, start time is shortened, and some hidden troubles in the installation can be avoided.Parts are same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.



C - TOP Valve control unit - - 2014

Displacement regulating version



Model



Sensor

Solenoid valve



Power



Connection



Remarks



1421-05-S1-V1



1



1



DC. 24V



Cable connection



Single acting



1421-05-S1-V2



1



2



DC. 24V



Cable connection



Double acting







1421-05-S1-V3







1







3







DC. 24V







Cable connection



Three effects (mixture proof valve)



1421-05-S1-V1-AS



1



1



DC. 24V



AS-I BUS



Single acting



1421-05-S1-V2-AS



1



2



DC. 24V



AS-I BUS



Double acting







1421-05-S1-V3-AS







1







3







DC. 24V







AS-I BUS



Three effects (mixture proof valve)



Mechanical regulating version



Model



Sensor

Solenoid valve



Power



Connection



Remarks



1421-05-S1-V1-M



1



1



DC. 24V



Cable connection



Single acting



1421-05-S1-V1-M



2



1



DC. 24V



Cable connection



Single acting



1421-05-S1-V2-M



2



2



DC. 24V



Cable connection



Double acting







1421-05-S1-V3-M







3







3







DC. 24V







Cable connection



Three effects (mixture proof valve)



1421-05-S1-V1-AS-M



1



1



DC. 24V



AS-I BUS



Single acting



1421-05-S1-V1-AS-M



2



1



DC. 24V



AS-I BUS



Single acting



1421-05-S1-V2-AS-M



2



2



DC. 24V



AS-I BUS



Double acting







1421-05-S1-V3-AS-M







3







3







DC. 24V







AS-I BUS



Three effects (mixture proof valve)
