Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VQD110XX
Contact Us

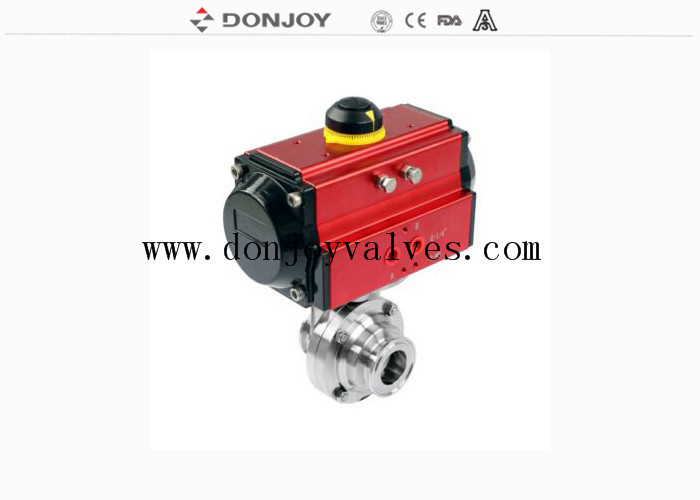

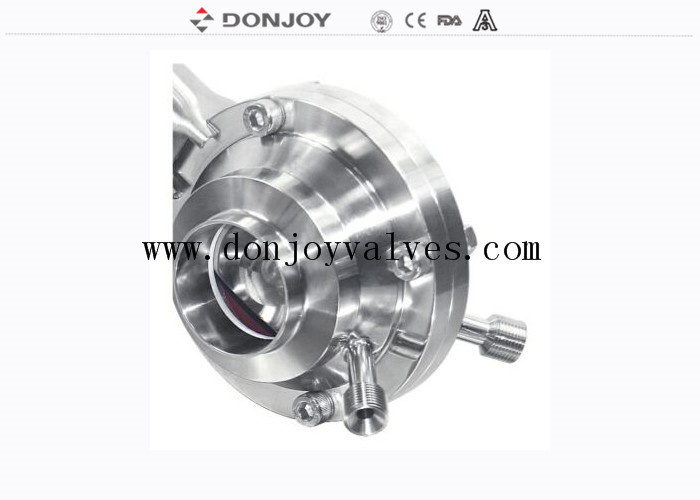

SS304 Sanitary Butterfly type ball valve with CIP cleaning
Detail:
Manual Ball Valve,CIP Cleaning Ball, Pneumatica Butterly type ball valve, C-top Pneumatica Butterly type ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve
Materials:AISI304/316L
Gasket: EPDM,
Seal:PTFE
Connection: Clamped, Thread, Welding
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Polished: Ra0.8um
Outside Polished: CNC Machining
Specification
| Product Name: | SS304 Sanitary Butterfly type ball valve with CIP cleaning |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The butterfly-Type ball valve is installed in any to pipeline and enquipments for to controling. It is specially used in brewing industry.
Technical Specification
Max Temperature: 121degree(EPDM)
Pressure: 10Bar
Drawing for Butterfly type ball valve
Tag:Donjoy sanitary valves, Ball valves,
