Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Model Number:
NO.MINI-VAQ100S1
Contact Us

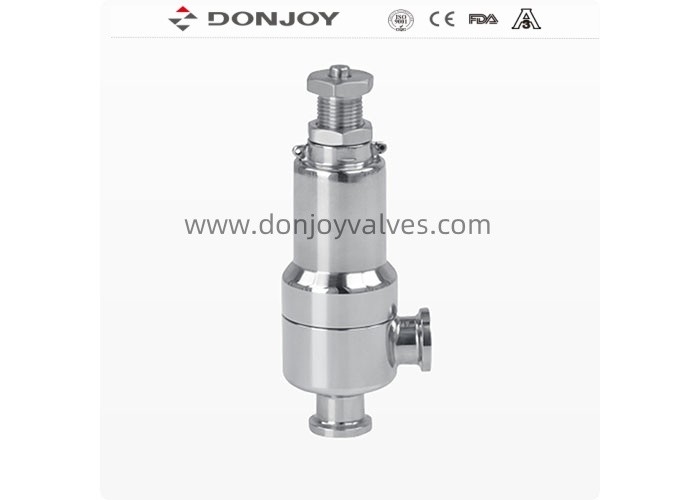

Donjoy Mini-Type sanitary safety valve PRV
Quick Detail
Pressure Safety Valve, Over flow Valve ,Pressure adjustable
Type: Manula, Pnuematic
Specification
|
Product Name: |
Donjoy Mini-Type sanitary safety valve PRV |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
EPDM,NBR,FPM |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max. Working Temperature: |
120 degree C |
|
Availably size: |
1/2",3/4" |
|
Availably connection: |
Flange,Clamp,Welded |
|
Availably standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic ,Maual |
|
Certificate: |
FDA,CE |
Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.
Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
Connection:
Drawing
Donjoy sanitary pressure valve, PRV, Air flowrate valve
