Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Model Number:
DJ-QX-GD
Contact Us

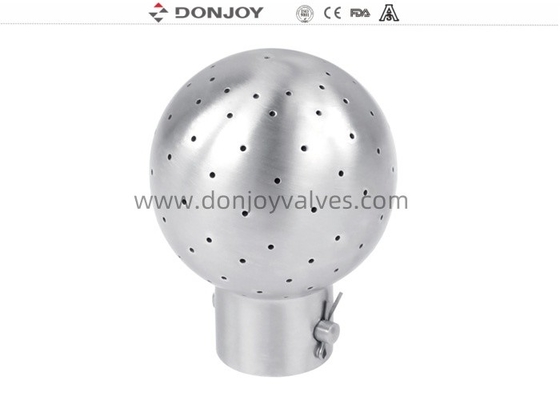

Donjoy fixed clenaing ball With Pin Connection SS316L
Quick Detail
Cleaning Ball
Tanks rotary ball
Specification
|
Product Name: |
SS316L Elliptial Rotary Tank Spray Balls with Pin connection |
|
Material: |
SUS304/316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
4-10 bar |
|
Suggest Pressure: |
6 bar |
|
Availably size: |
1"-2.5" |
|
Connection way: |
thread BSP,clamp Pin, Welded |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Typical Application
1. Fixedinstallaiton CIP System
2. Process Containers and reator
3. Store tank
4. Transport tank equipment
5. Fermentation
6. Yeast Breeding
Type: 360 Degree, 180 Degree, 270 Degree
Drawing
Operating Principle
1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface
2. Rotary injector with unique self cleaning funciton, internal is completely cleaning.
Donjoy tanks cleaning ball,
