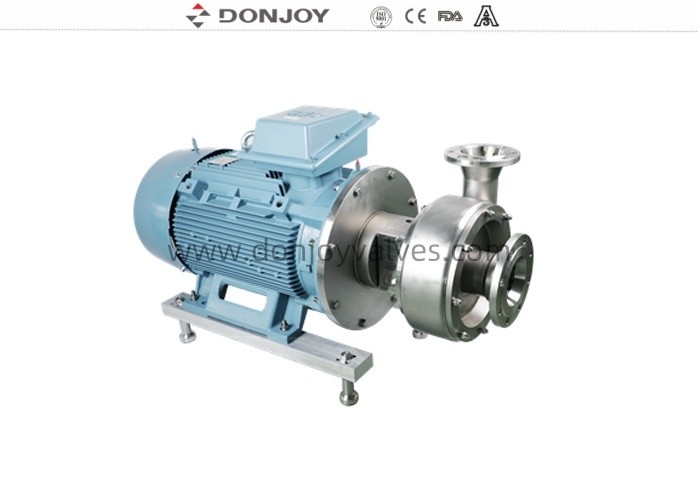

Donjoy MLX Centrifugal Pump with 200m³/h for big flowrate
Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5. Outside Surface sinishing:sandblast or mirror polish
Specifications
|
Product Name: |
Donjoy MLX Centrifugal Pump with 200m³/h for big flowrate |
|
Valve Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM (Viton) and NBR |
|
Max. Flow: |
1000 m3/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
70H (m) |
|
Max. Working Pressure: |
7 bar / 99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC/Sic/EPDM(Standard), C/SIC, TC/TC |
|
Sealing type: |
Flushed double mechanical seal / single mechanical seal(standard) |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw |
|
Voltage: |
110V, 220V, 380V |
|
Motor: |
ABB / domestic / SIEMENS |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Application structure: |
DLX
|
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Eclectic |
|
Low discharge option : |
Low discharge/diaphragm valve/ball valve/butterfly valve |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Feature
Motor: ABB / domestic / SIEMENS Motor ( optional )
Availabe connection: tri-clamped, threaded and Flanged.
Available standard: DIN, SMS, 3A, RJT, ISO / IDF
Sealing type: machanical seal
Function: flow control
Applications
The MLX Series is a high-flow centrifugal pump with open impller design, The hydraulic model is designed with CFD to improve the over-shear damage of materials under the premise of ensuring high efficiency hydraulic performance. Pump cover and parts contacting with medium are all made of 304/316l SS. It is mainly use to transport low-viscosity fermentation broth, wort, juice, jam, food, beverage, etc.. and can also be sued for in dustrial fileds such as pharmaceutical, chemical, industrial water, driking water treatment and so on.
Selection table
PUMP CURVE
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Performance graph
D-LX Centrifugal comprehensive performance graph
