Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
DLX
Contact Us

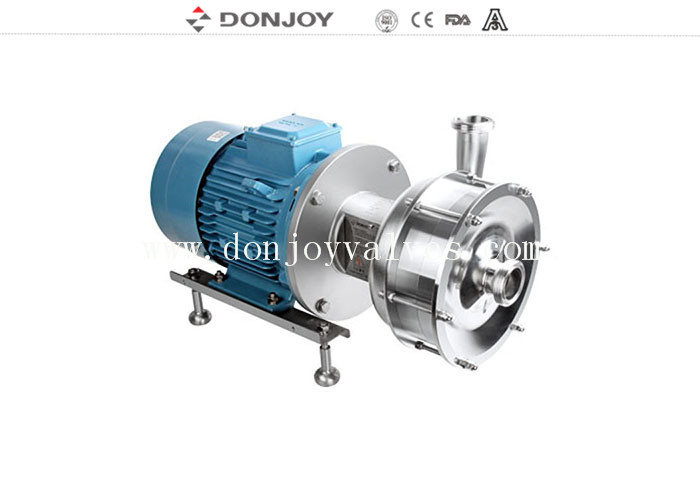

DONJOY DLX-3-15 open impeller sanitary Centrifugal pump for beer
DLX MODEL
DLX-2-05, DLX-2-10, DLX-2-15,DLX-2-20, DLX-2-30,DLX-2-35
DLX-3-05, DLX-3-10, DLX-3-15,DLX-3-20, DLX-3-30,DLX-3-35
Solution for high efficiency, low noise, high head, simple and economical maintenance, high purity
Description

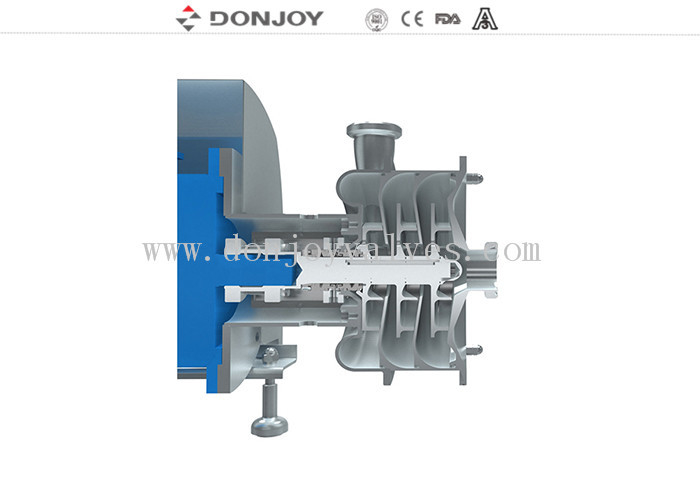

The DLX Series centrifugal pump is a horizontal multi-stage open impeller centrifugal pump with high purity, high efficiency, max head can be up to 180M(18Bar). It is soft and hygienic to transport medium. Mainly used in food and beverage, dairy, brewery carbonation process, CIP feed, pharmaceutical industry, pure water pump(WFI Injection water), biotechnology production, infusion(nutrient solution, ethanol)filling station, personal care, soap, skin cream, lotion industry, purification treatment(CIP system),water technology, semiconductor production, metal surface treatment, etc..
Options
1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM (Single seal/ Double seal)
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ
5. Motor brand: Siemens, ABB, Chinese Brand
Specifications
|
Product Name: |
Sanitary Multi-stage Centrifugal pump with high pressure for beverage |
|
Valve Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM (Viton) and NBR |
|
Max. Flow: |
150 m³/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
180H(m) |
|
Max. Working Pressure: |
18bar |
|
Max. WorkingTemperature: |
120 °C |
|
Motor: |
ABB / domestic / SIEMENS |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Application structure: |
DLX |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Low discharge option : |
Low discharge / diaphragm valve / ball valve / butterfly valve |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Rotors: |
Opening |
|
Level: |
Sanitary grade |
Applications

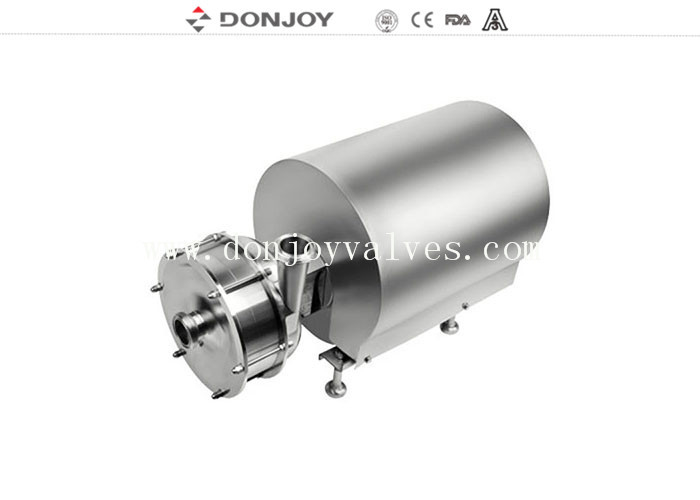

1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.
Technical Advantages
Maintenance disassembly and installation can be completed without professional staff and special tools.
Initial use of installation debugging, even if a short revere rotation will not be damage.
Impeller and shaft are connected by keyway, Impeller and mechanical seal rotating ring are connected by pin.Mechanical seal static ring and pump body are connected by special-shaped flange
Compatible with single and double machine seal, only need to change machines seal.
Connection
Selection Table
Drawing
DLX Drawing
PUMP CURVE
Packaging Details
Plywood case or customerized. Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
